The TURNKEY® Rhino tooth and adapter range, patented by FEURST, is designed to meet the demands of Mining and Quarry machines.
Our bucket equipment combines performance, productivity & durability in extremely demanding applications of abrasiveness and impact resistance.

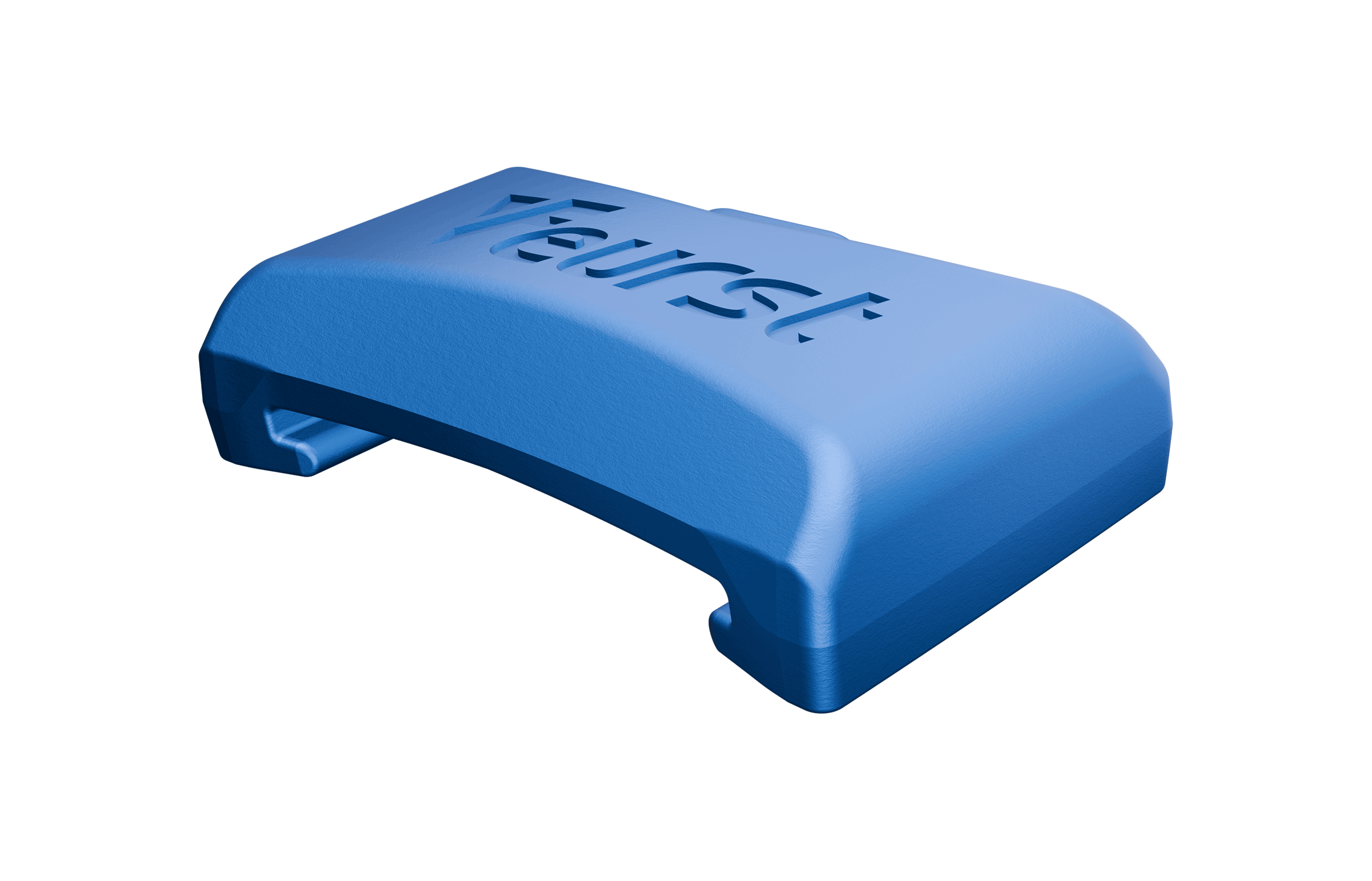

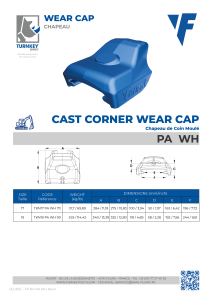

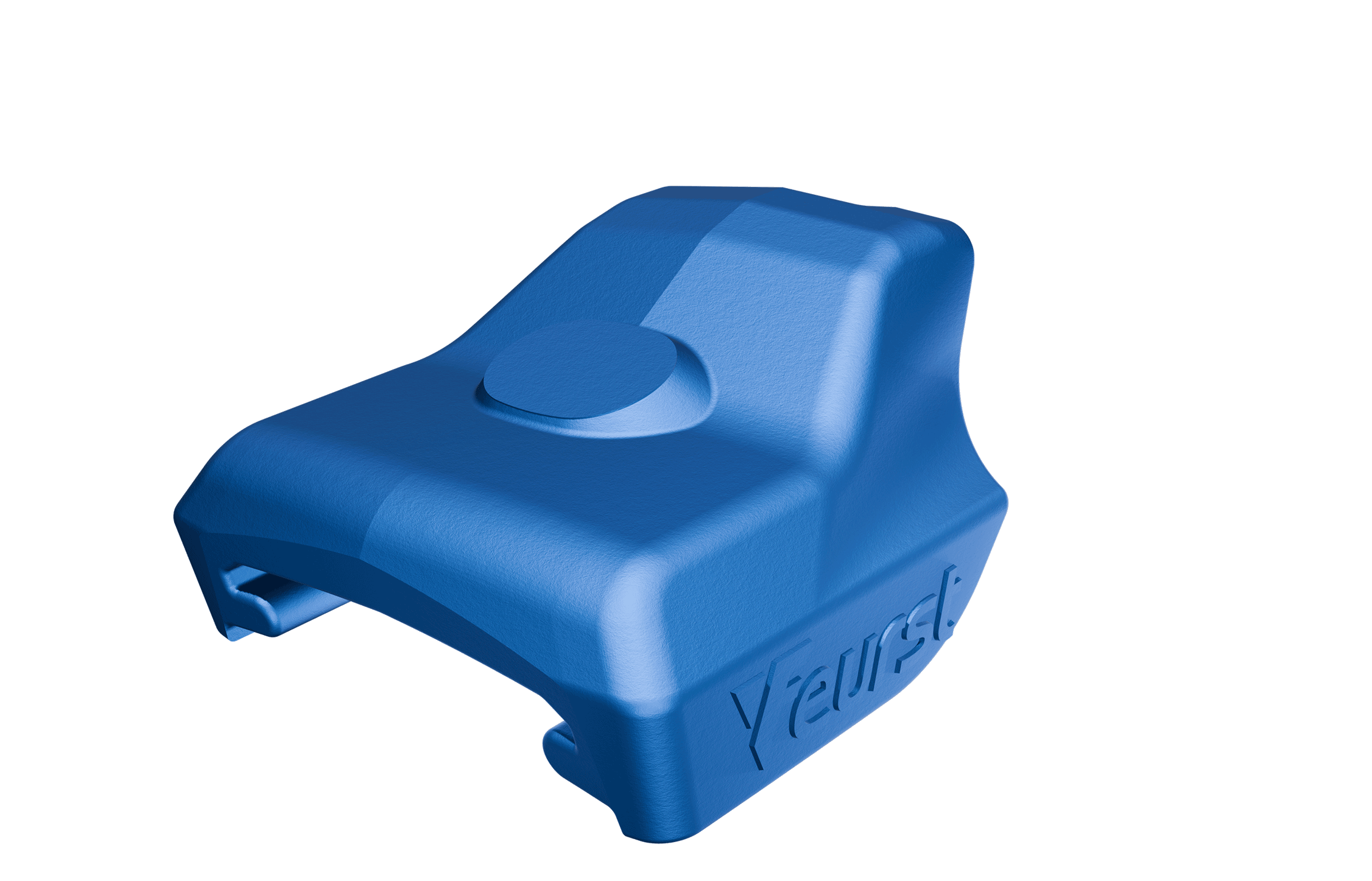

A sliding mechanical wear cap is mounted on top of each adapter to prevent premature wear and damage.
The wear caps are reversible, held in place by the tooth, and last up to 2 tooth changes, depending on the material’s abrasiveness.
All tooth profiles are designed to self-sharpen as they wear and do not need to be reversed.
The adapter geometry protects welds and ensures secure retention.
The teeth are locked onto the adapter; noses do not need to be rebuilt.
Tooth & adapter system for mines and quarries: more productivity, safety and optimized TCO.
The TURNKEY® Rhino locking system is hammerless, greatly reducing the risk of metal projection and accidents.
Pins are pushed by hand and rotated 180° with an assembly tool.
Quick and easy replacement by a single person.
Lifting ring on the upper part for smooth installation.
The pin and sleeve are not damaged during installation/removal. The sealed sleeve makes replacement easier.
The CPL and CPR protective caps ensure quick access for disassembly.
Discover our range of TURKEY® Rhino teeth and their applications depending on terrain requirements.
Mining Resistance +: Reinforced mining bucket tooth offering a good balance between abrasion resistance and penetration in severe applications.
Resistance Mining: Mining bucket tooth offering a good balance between abrasion resistance and penetration in severe applications.
Reinforced Abrasion +: Loader tooth for very heavy-duty and abrasive use, with a large heel.
Super Abrasion: Excellent abrasion resistance with heel maintaining penetration profile.
Penetrating Abrasion: Loader tooth offering good wear resistance combined with good penetration.
Reinforced Penetration: Good tooth profile for excellent penetration. Good compromise between material wear and penetration.
Short Penetrating: Short tooth with good profile for use on ripper fingers or buckets.
Double Penetrating: Double-pointed tooth. Used on bucket corners to protect the sides, or on a complete blade.
Penetrating Coal: Sharp, penetrating tooth used to scalp layers of material in low-abrasion environments (such as coal).
Penetrating: Long, pointed tooth ensuring excellent penetration
Reinforced Penetration +: Sufficient material to resist abrasion while offering an excellent profile for easy penetration.
Reinforced Abrasion: Loader tooth for highly abrasive use, with a large heel.

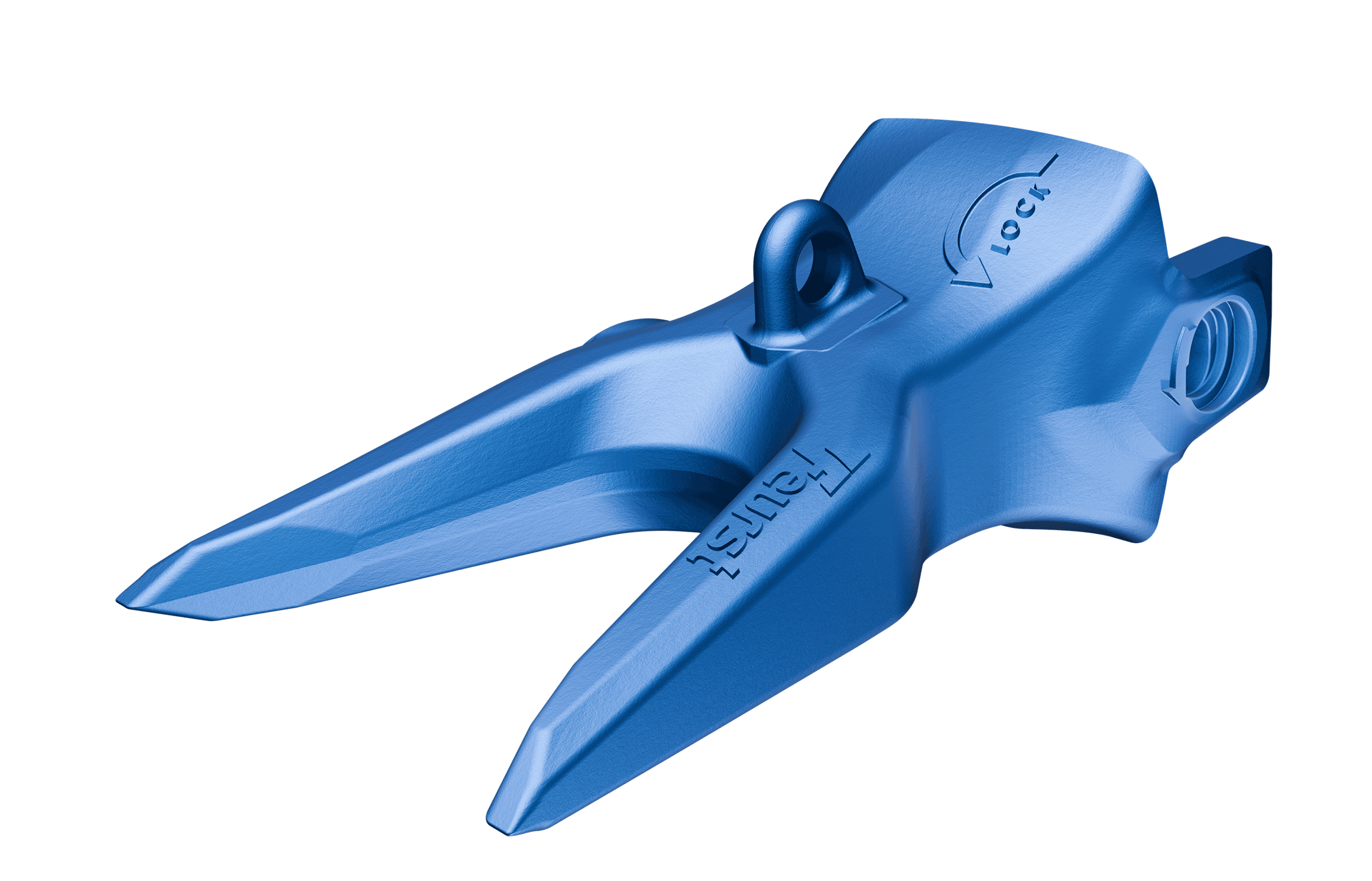

Double Penetrating Edge (DPE) : Double-pointed tooth. Used on bucket corners to protect the sides, or on a complete blade.

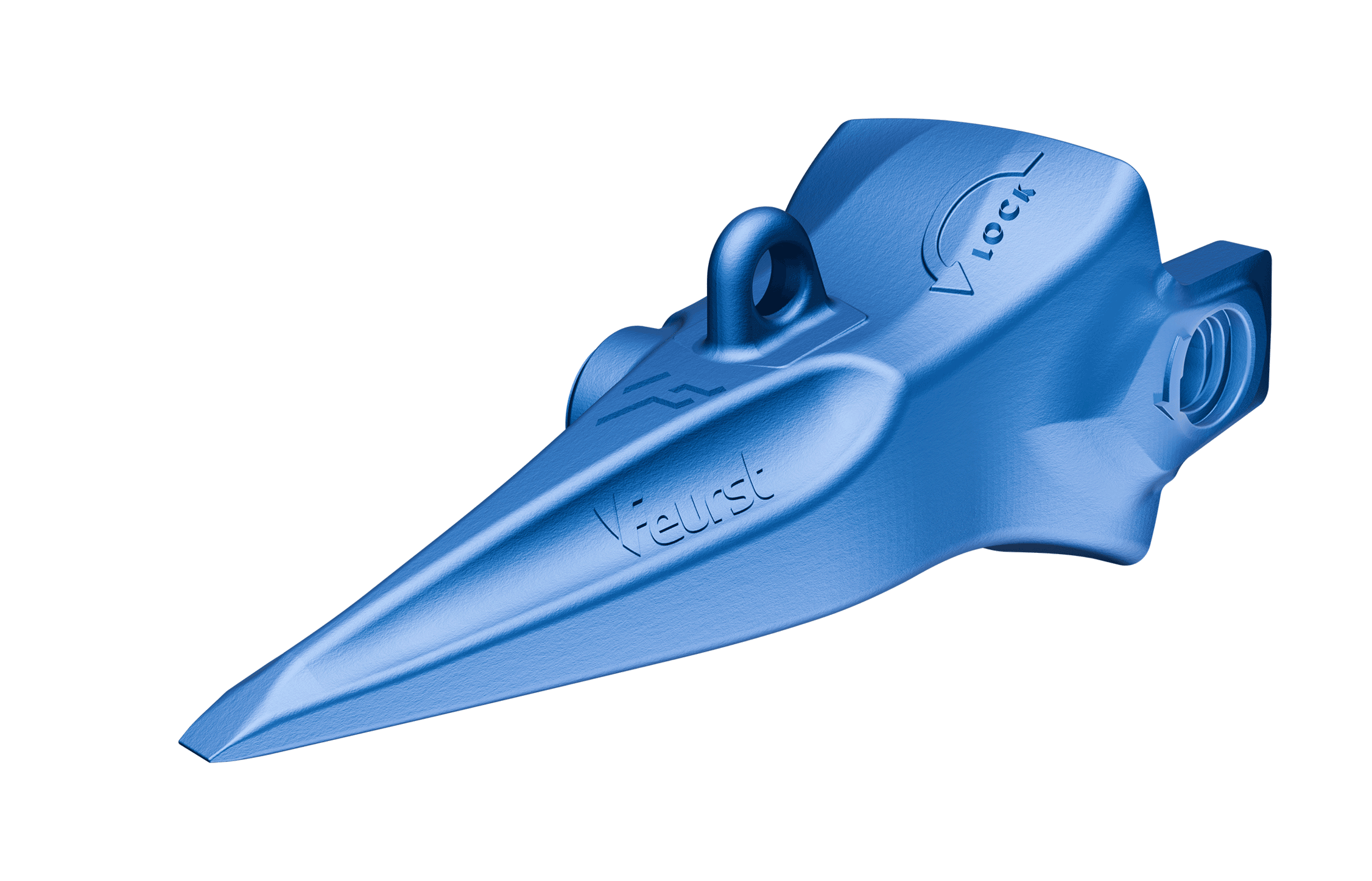

Penetrating (PE) : Long, pointed tooth ensuring excellent penetration.

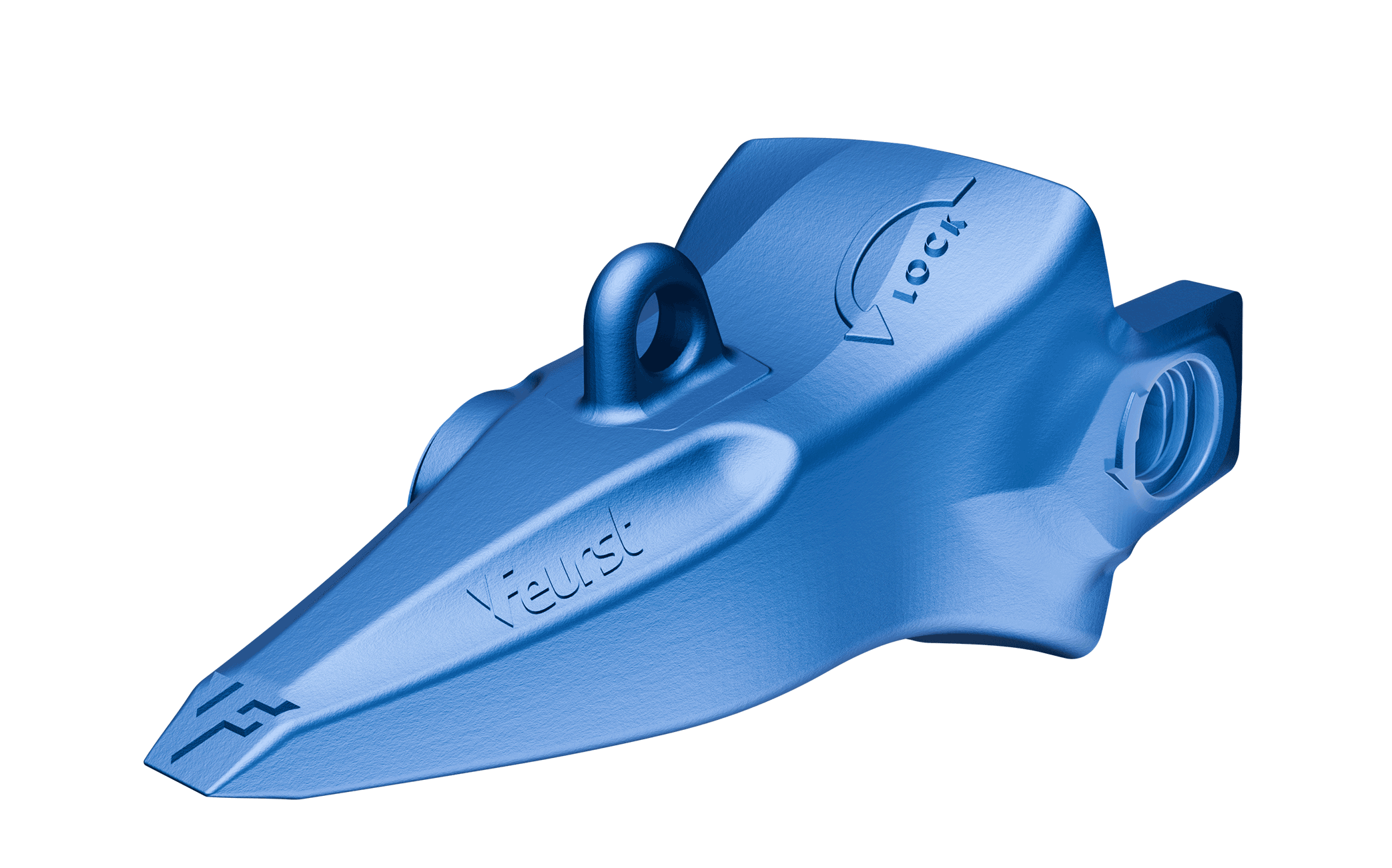

Short Penetrating (PE-C) : Short tooth with a good profile for use on ripper fingers or buckets.

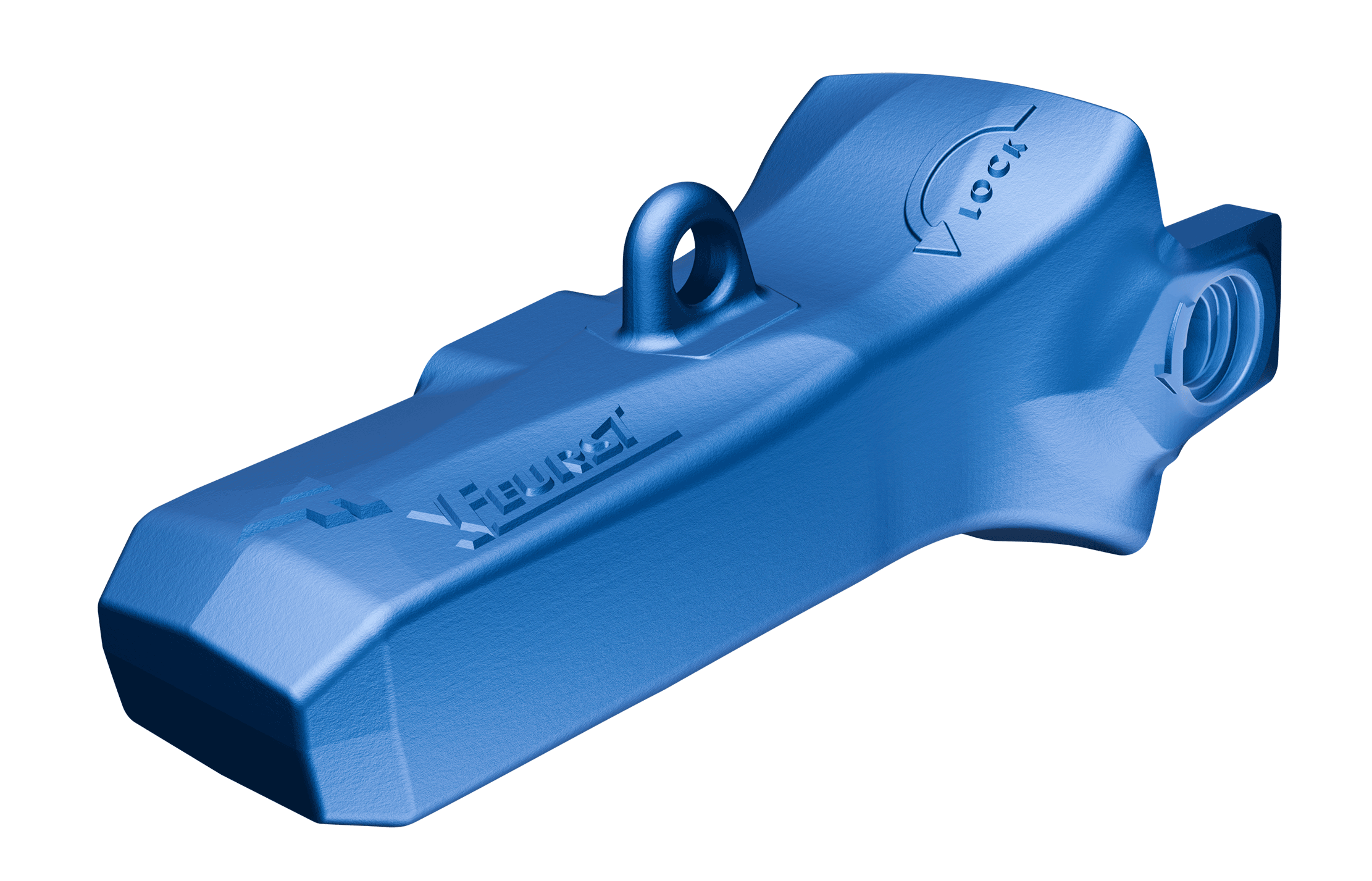

Resistance Mining (RM-R) : Mining bucket tooth
offering a good balance between abrasion resistance and penetration in severe applications.
Reinforced Penetration (RP) : Good tooth profile for excellent penetration. Good compromise between material wear and penetration.

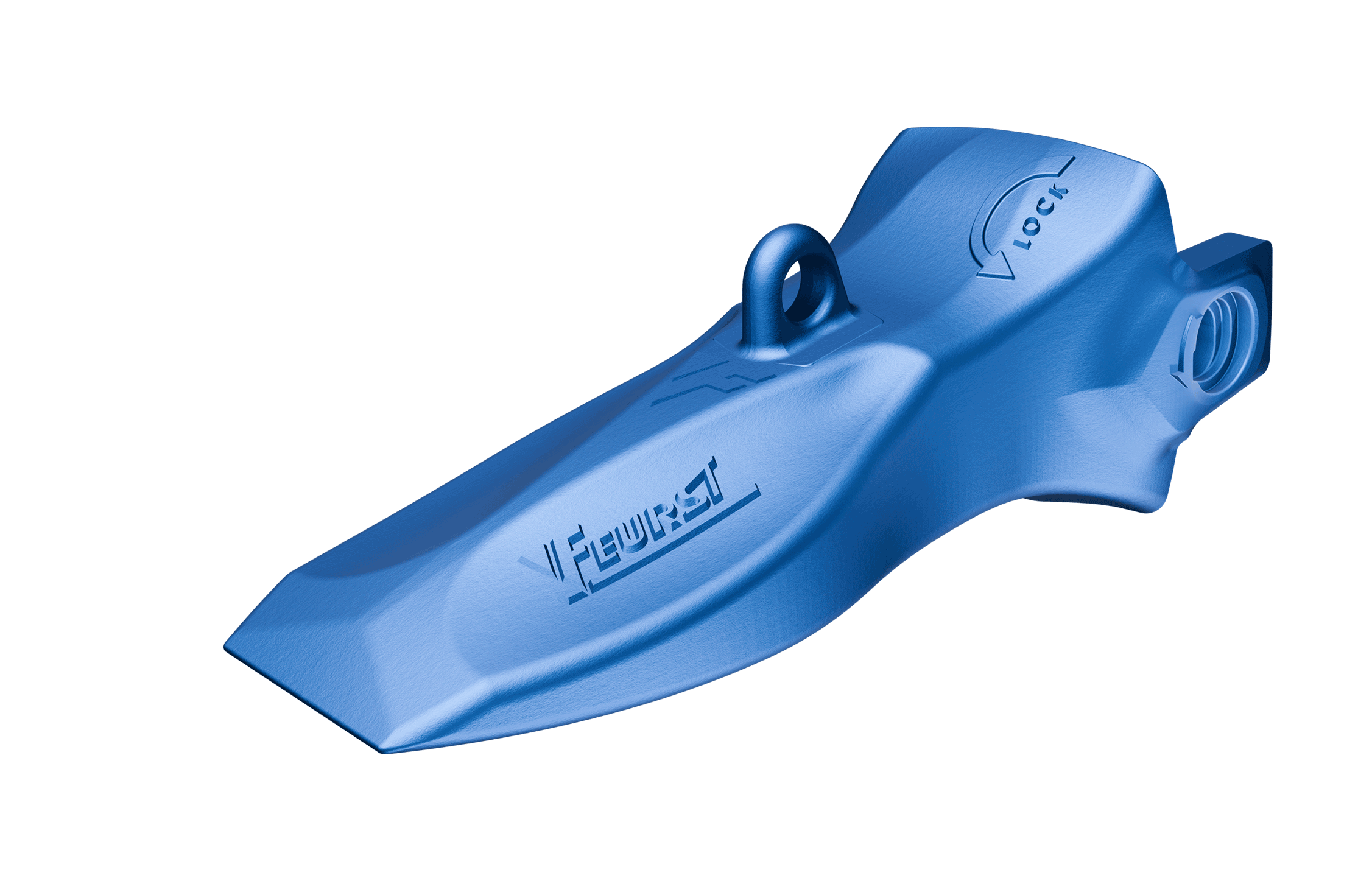

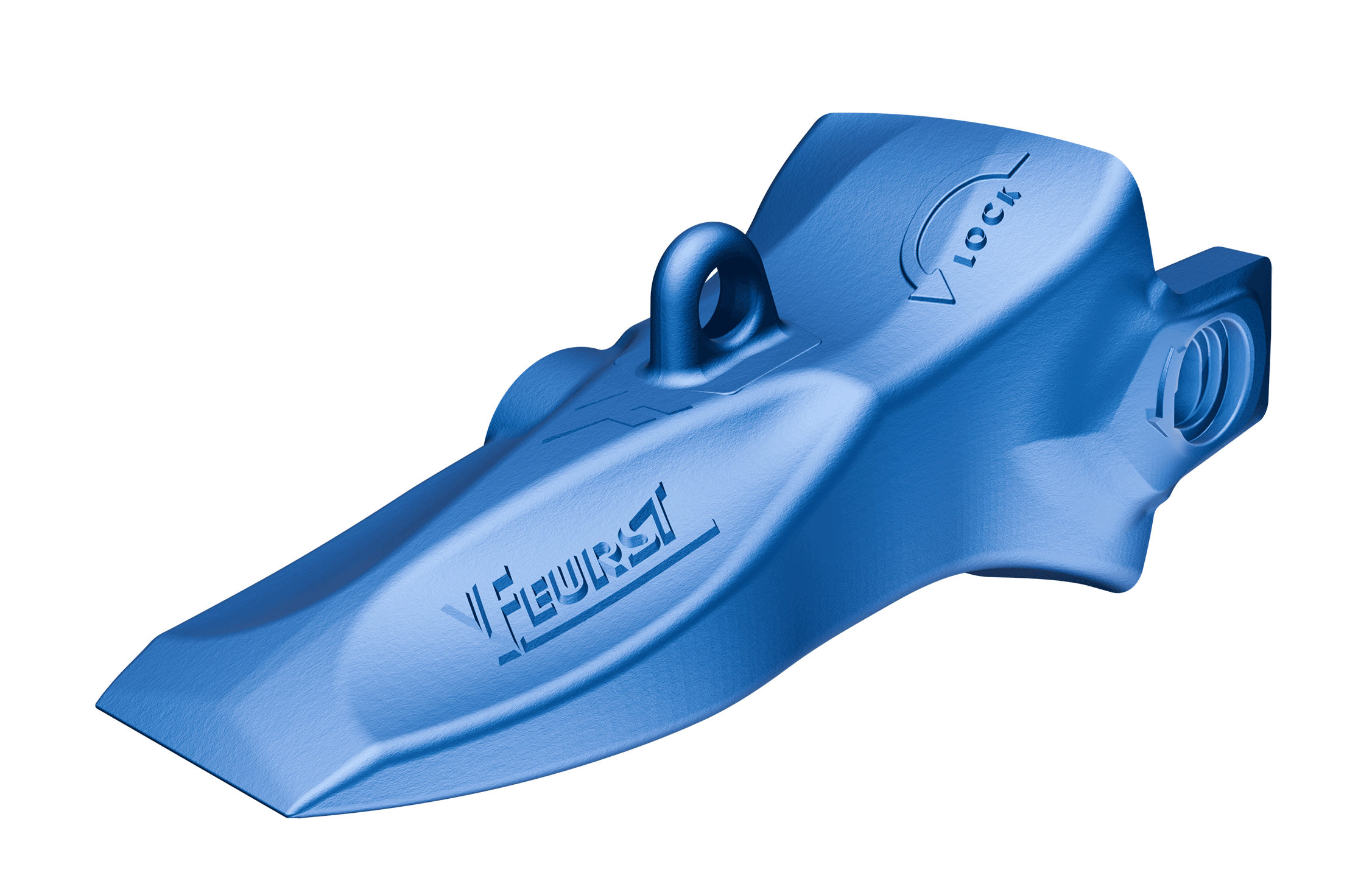

Reinforced Penetration + (PR-R) : Sufficient material to resist abrasion while offering an excellent profile for easy penetration.

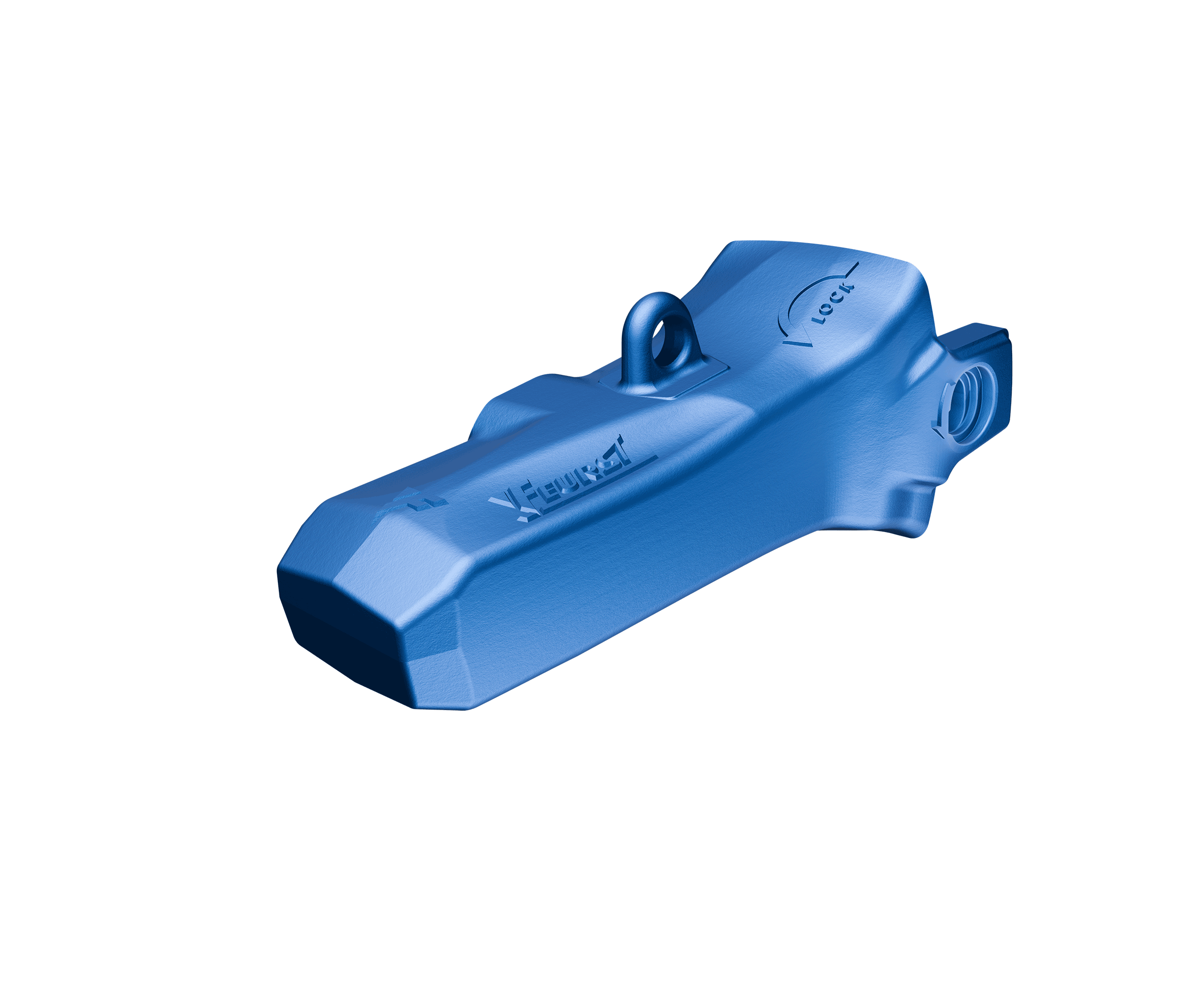

Resistance Mining + (RM-RR) : Reinforced mining bucket tooth offering a good balance between abrasion resistance and penetration in severe applications.

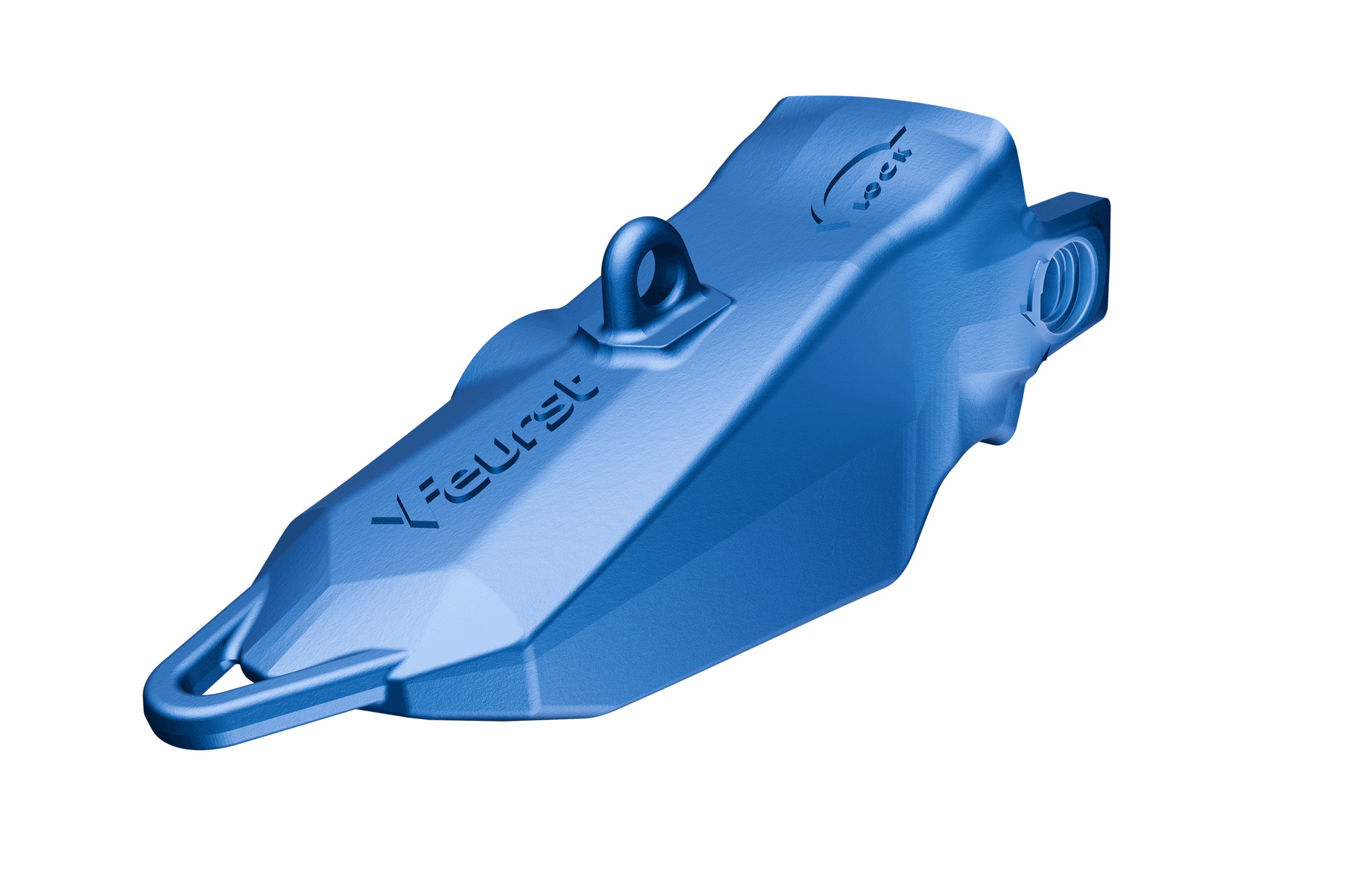

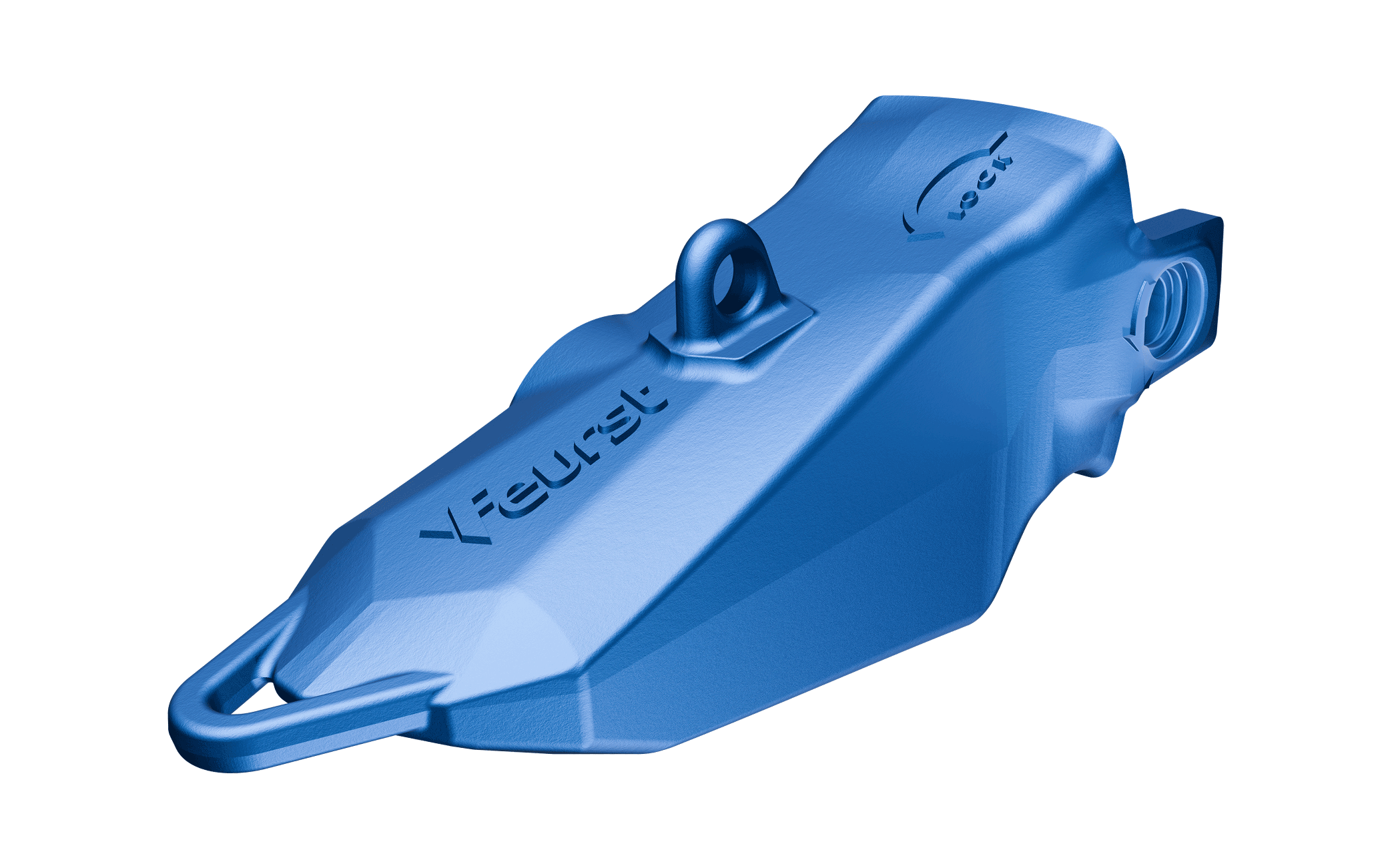

Reinforced Abrasion + (RA) : Loader tooth for very heavy-duty and abrasive use, with a large heel.
Penetrating Abrasion (PA) : Loader tooth offering good wear resistance combined with good penetration.

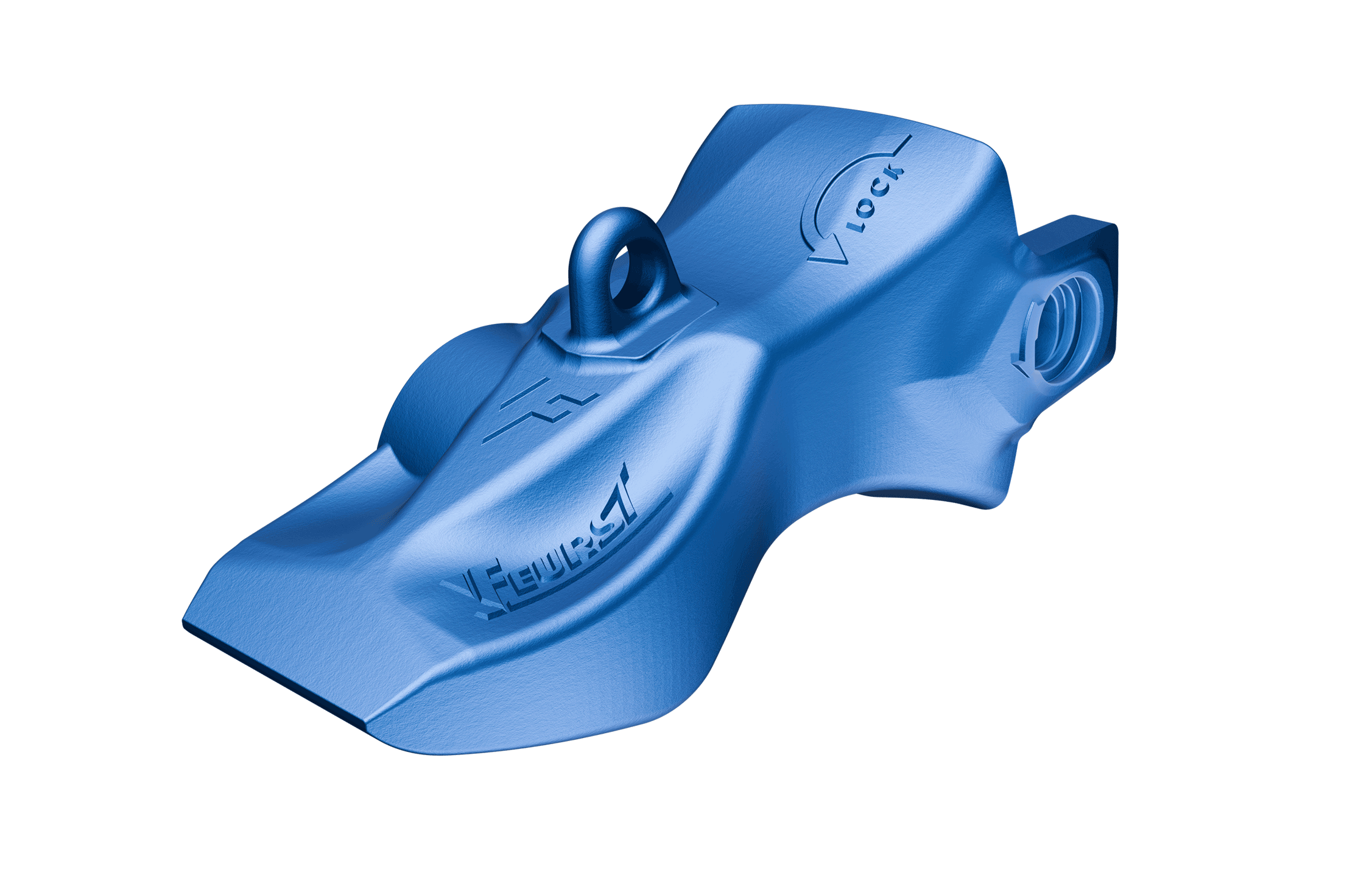

Super Abrasion (SA) : Excellent abrasion resistance with a tread pattern that preserves penetration

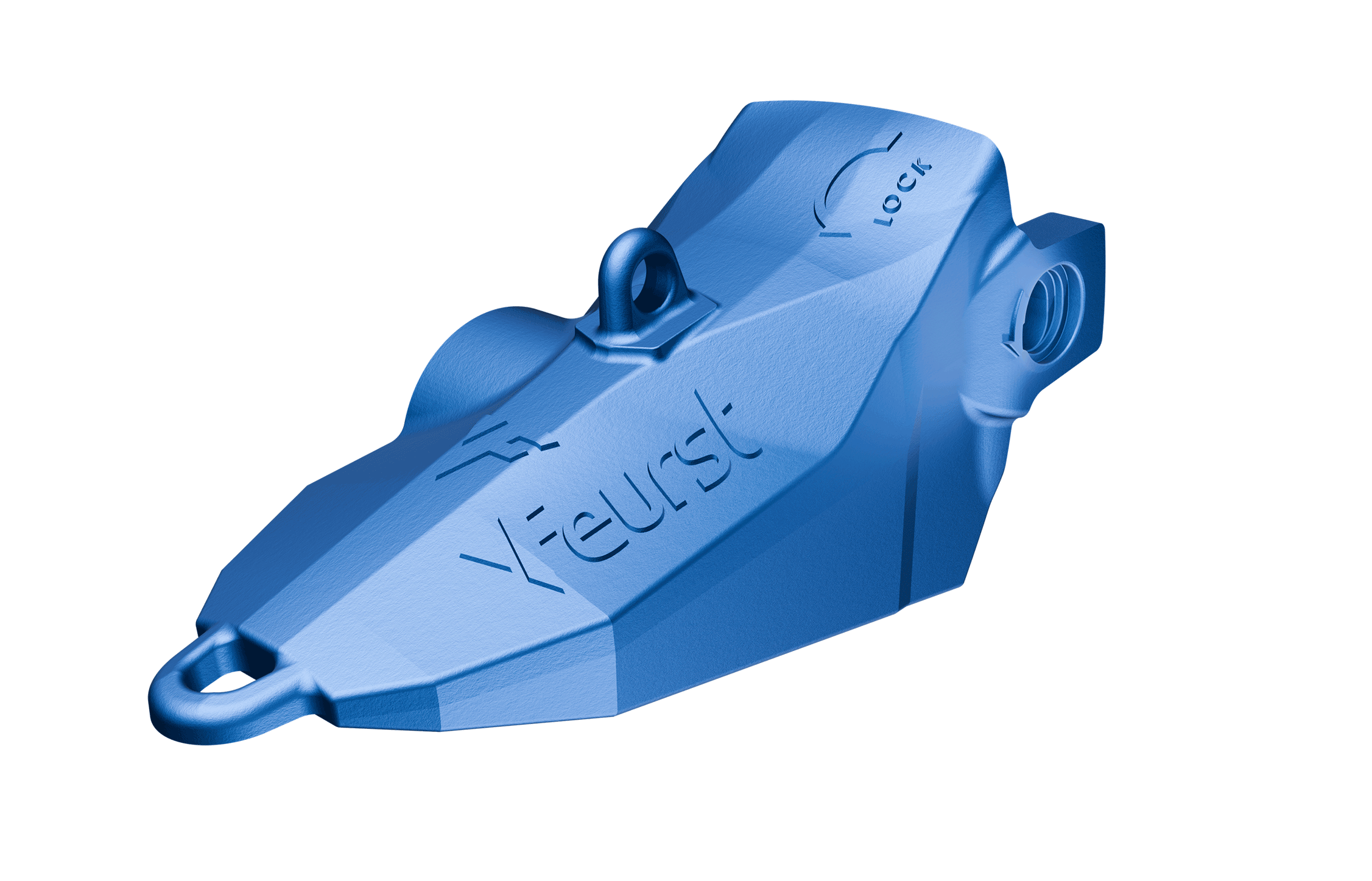

Reinforced Abrasion (RPL) : Loader tooth for highly abrasive use, large heel.
Reinforced Abrasion + (RA-X): Loader
tooth for very hard and abrasive use, important heel.

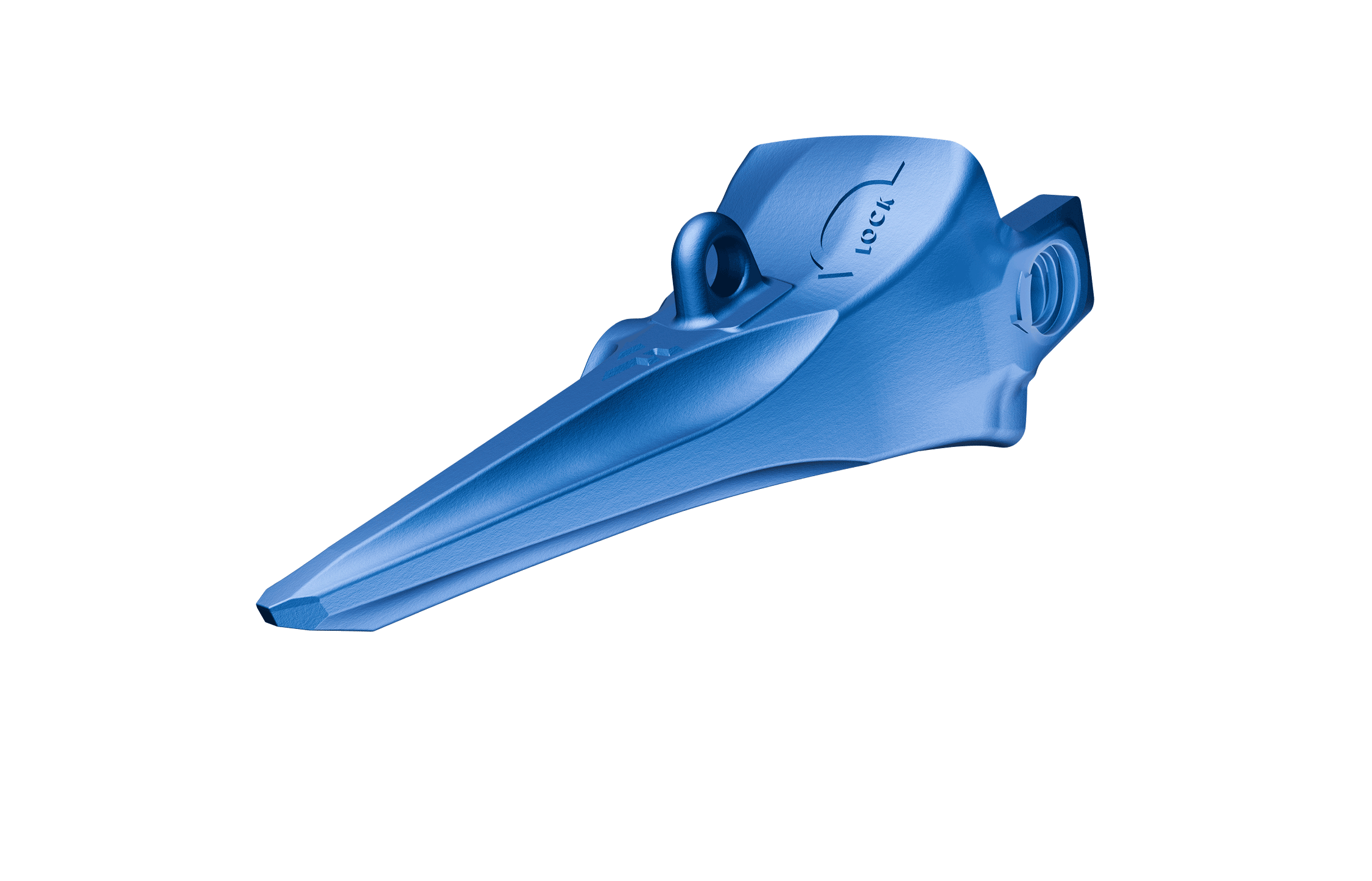

Coal Penetration (CP) : Pointed and penetrating tooth, used to scalp layers of materials in less abrasive environments (such as coal).

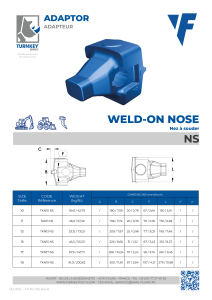

Tooltip contentWelding nose : Adapter for derating and repairing adapters

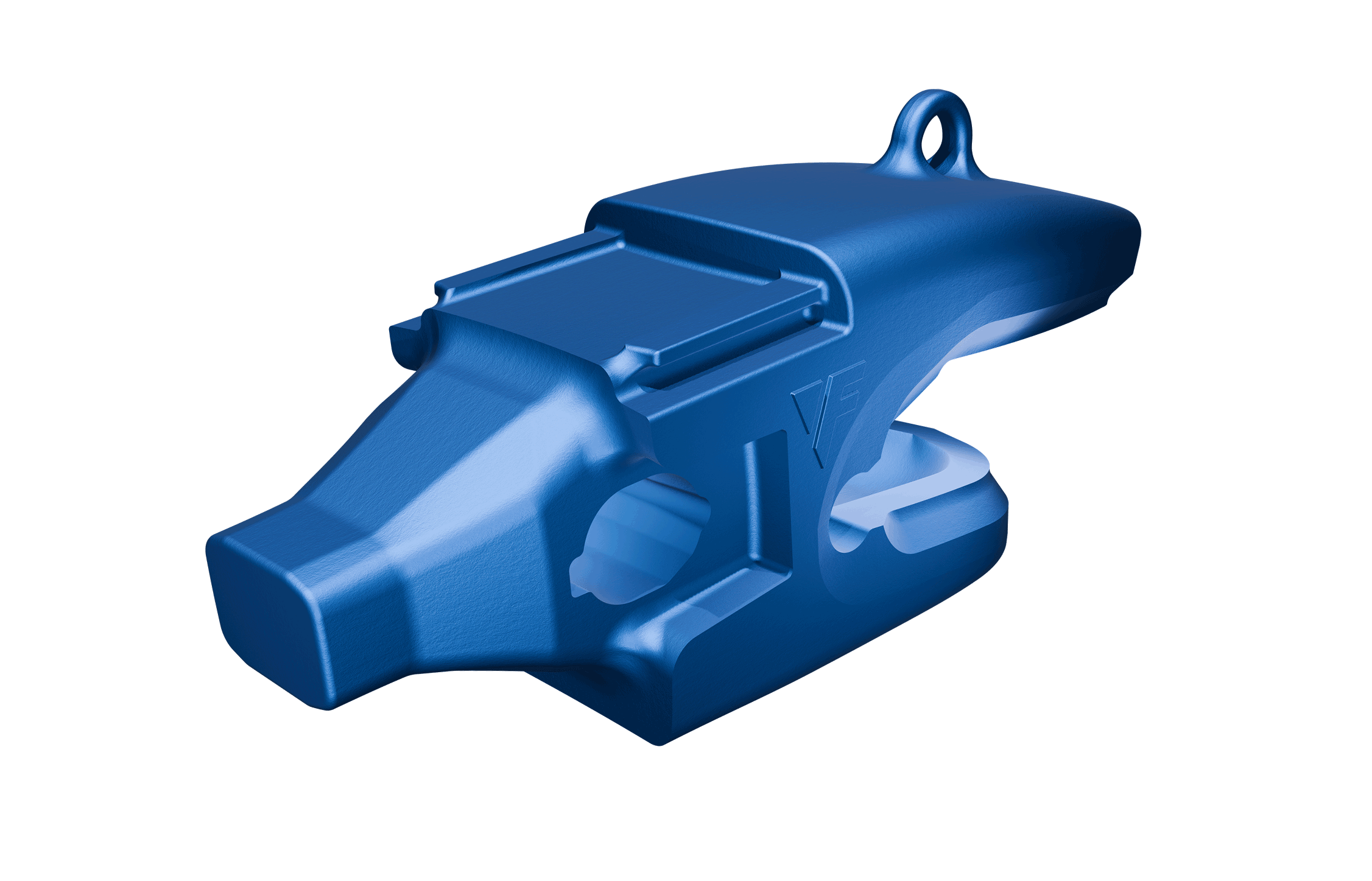

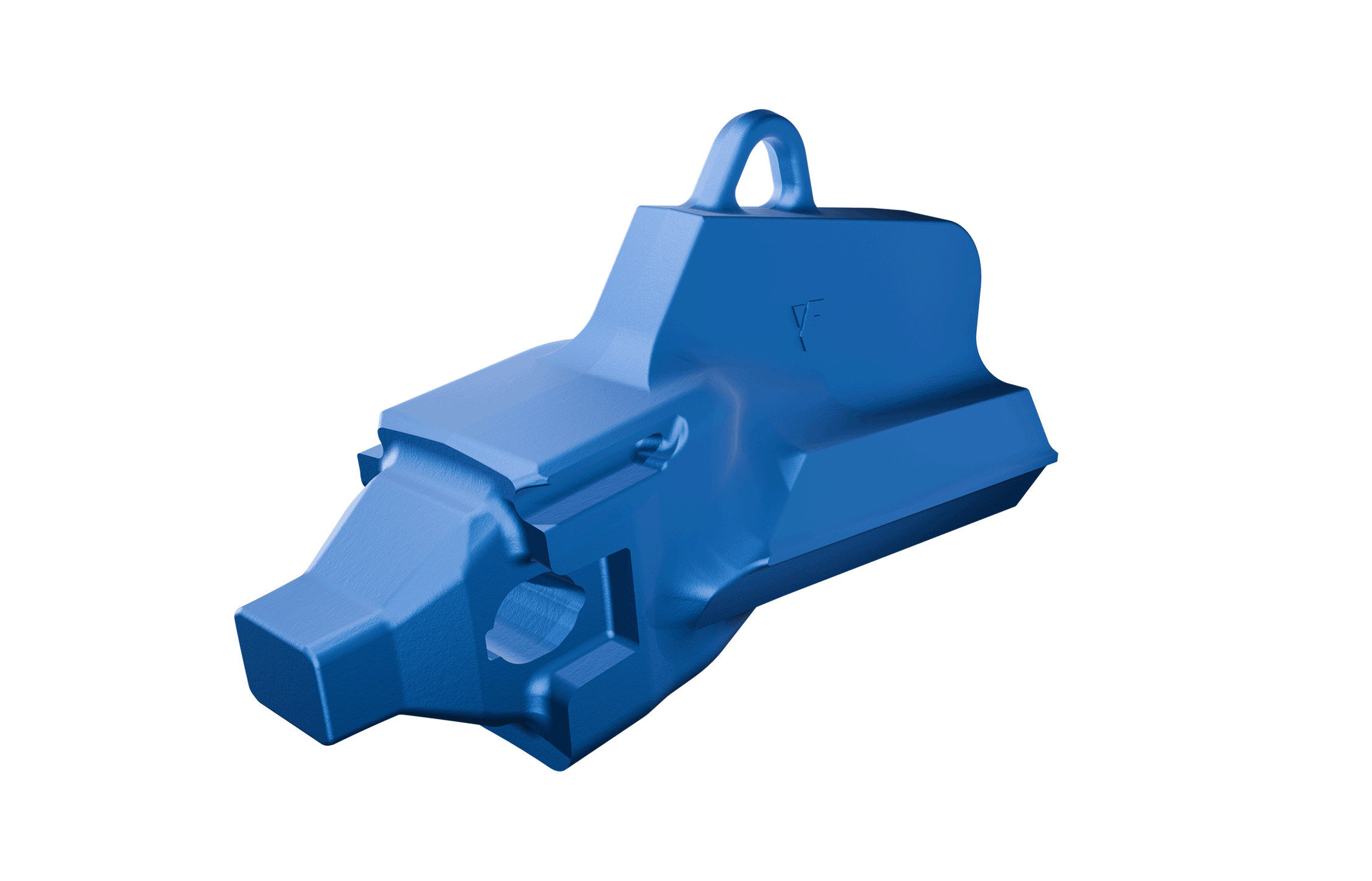

Abrasion : Adapter for large shovels and loaders. The upper branch is thicker. Excellent abrasion resistance.

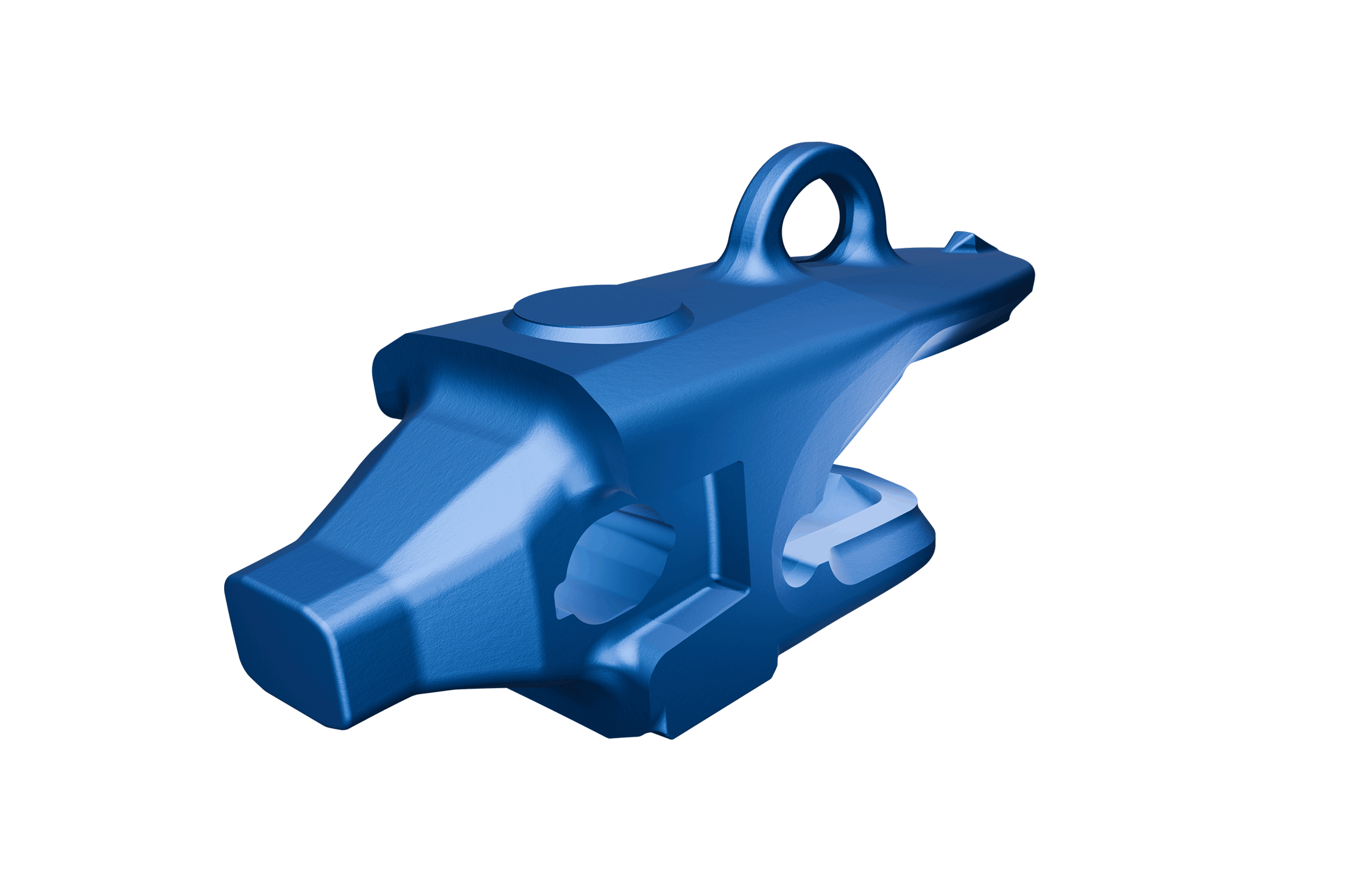

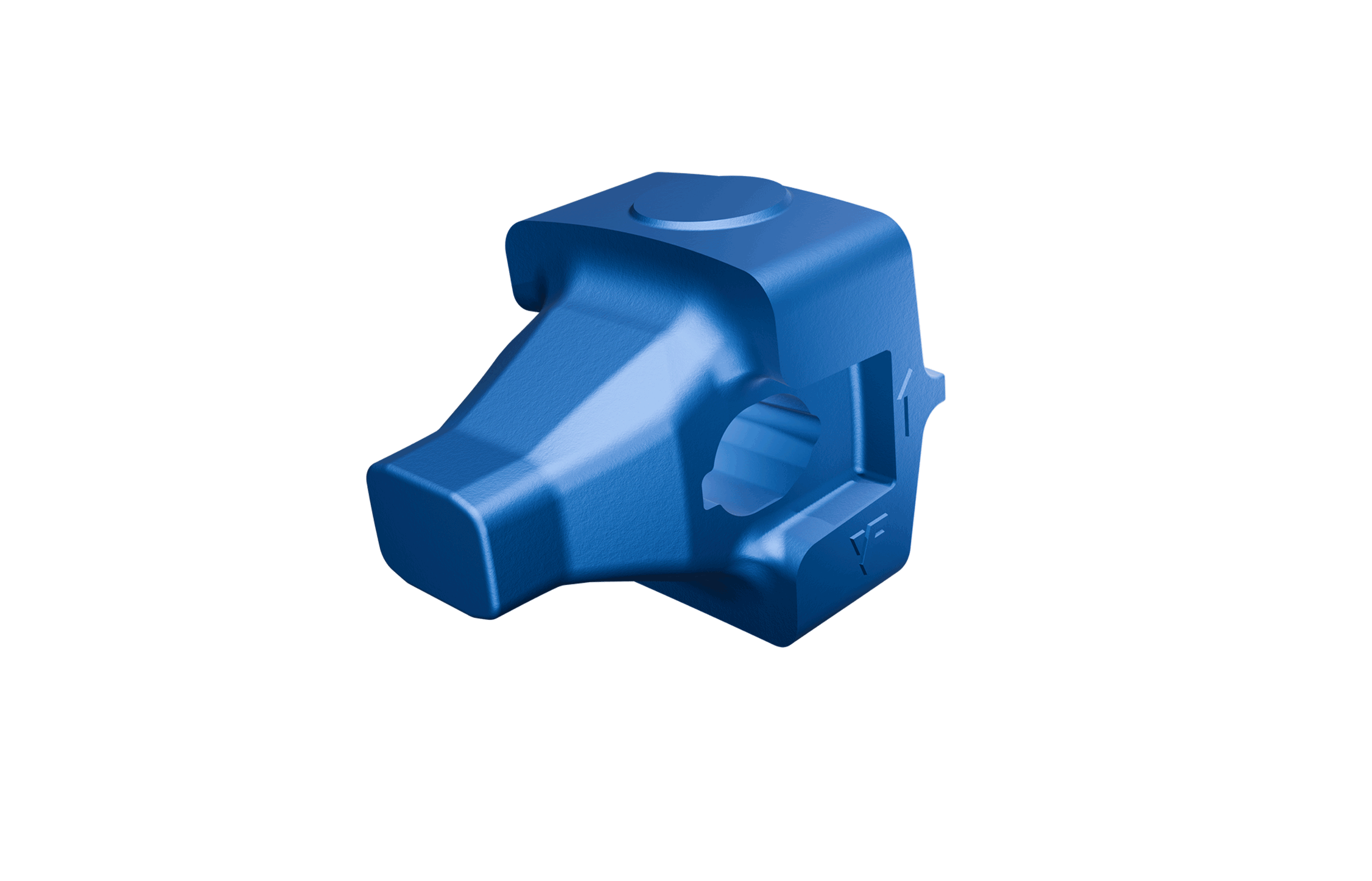

Standard : Adapter for shovels.
Excellent hold on the blade. Good continuity profile with the tooth and very good abrasion resistance.
(B.O.F = Break Out Force) exprimée en tonnes (T)
| Machine | TKN 10 | TKN 11 | TKN 13 | TKN 15 | TKN 17 | TKN 19 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard | HD | Standard | HD | Standard | HD | Standard | HD | Standard | HD | Standard | HD | |
|
Excavatrice POIDS Max. T Max. B.O.F |
70 | 50 | 110 | 88 | 180 | 130 | 270 | 188 | 325 | 210 | 450 | 350 |
| 35 | 29 | 46 | 38 | 60 | 46-48 | 79 | 63 | 95 | 73 | 120 | 98 | |
|
Pelle Butte POIDS Max. T Max. B.O.F |
70 | 50 | 108 | 80 | 180 | 135 | 250 | 190 | 315 | 250 | 460 | 340 |
| 42 | 35 | 56.5 | 46 | 70 | 54 | 88 | 70 | 105 | 82 | 140 | 110 | |
|
Chargeuse POIDS Max. T Max. B.O.F |
85 | 60 | 133 | 93 | 170 | 133 | 280 | 220 | 300T | 270 | - | - |
| 59 | 49 | 77 | 63 | 98 | 78 | 133 | 105 | 160 | 130 | - | - | |
