The teeth & adapters from theTURNKEY® Rhino tooth and adapter range, patented by FEURST, are designed to fulfil the requirements of mining and quarrying machinery.
Our buckets equipments combine performance, productivity, and durability in the toughest abrasive shock applications.
A sliding mechanical wear cap is mounted on top of each adapter to prevent premature wear and damage.
The wear caps are reversible, held in place by the tooth, and last up to 2 tooth changes, depending on the material’s abrasiveness.
All tooth profiles are designed to self-sharpen as they wear and do not need to be reversed.
This reduces machine downtime. The adapter’s geometry is designed to protect the welds from wear, ensuring a secure fitting at all times.
The teeth are locked onto the adapter; noses do not need to be rebuilt.
Tooth & adapter system for mines and quarries: more productivity, safety and optimized TCO.
The TURNKEY® Rhino locking system is hammerless, greatly reducing the risk of metal projection and accidents.
Pins are pushed by hand and rotated 180° with an assembly tool.
Quick and easy replacement by a single person.
Lifting ring on the upper part for smooth installation.
The pin and the plug can not be damaged during installation or disassembly.
The dustproof plug protects and facilitates teeth replacement operations. The caps secure quick access to pin socket hole.
The CPL and CPR protective caps ensure quick access for disassembly.
Discover our range of TURKEY® Rhino teeth and their applications depending on soils requirements.
Mining Resistance +: Reinforced mining bucket tooth offering a good balance between abrasion resistance and penetration in severe applications.
Resistance Mining: Mining bucket tooth offering a good balance between abrasion resistance and penetration in severe applications.
Reinforced Abrasion +: Loader tooth for very heavy-duty and abrasive use, with a large heel.
Super Abrasion: Excellent abrasion resistance with heel maintaining penetration profile.
Penetrating Abrasion: Loader tooth offering good wear resistance combined with good penetration.
Reinforced Penetration: Good tooth profile for excellent penetration. Good compromise between material wear and penetration.
Short Penetrating: Short tooth with good profile for use on ripper fingers or buckets.
Double Penetrating: Double-pointed tooth. Used on bucket corners to protect the sides, or on a complete blade.
Penetrating Coal: Sharp, penetrating tooth used to scalp layers of material in low-abrasion environments (such as coal).
Penetrating: Long, pointed tooth ensuring excellent penetration
Reinforced Penetration +: Sufficient material to resist abrasion while offering an excellent profile for easy penetration.
Reinforced Abrasion: Loader tooth for highly abrasive use, with a large heel.
Twin Pick (DPE) : Double vector tooth used on bucket corners to protect the sides from wear.
Pick (PE) : Long and sharp tooth ensuring an excellent penetration.
Pick Short (PE-C) : Short tooth,accurate shape to be used as rock cutting tooth (ripper).
Resistance Mining (RM-R) :Mining tooth provides a good balance of abrasion
resistance and penetration for tough applications
Rock Chisel (PR) : Perfect tooth shape for a strong penetration. Excellent compromise wear material/penetration.
Rock Chisel + (PR-R) : Enough material for a correct abrasion resistance perfect shape enabling better penetration.
Resistance Mining + (RM-RR) : Reinforced mining bucket tooth offering a good balance between abrasion resistance and penetration in severe applications.
Reinforced Abrasion + (RA) : Loader tooth for very heavy-duty and abrasive use, with a large heel.
Penetrating Abrasion (AP) : Loader tooth offering good wear resistance combined with good penetration.
Super Abrasion (SA) : Excellent abrasion resistance with penetration-maintaining heel profile.
Reinforced Abrasion (RPL) : Loader tooth for highly abrasive use, large heel.
Reinforced Abrasion + (RA-X): Loader
tooth for very hard and abrasive use, important heel.
Coal Penetration (CP) : Pointed and penetrating tooth, used to scalp layers of materials in less abrasive environments (such as coal).

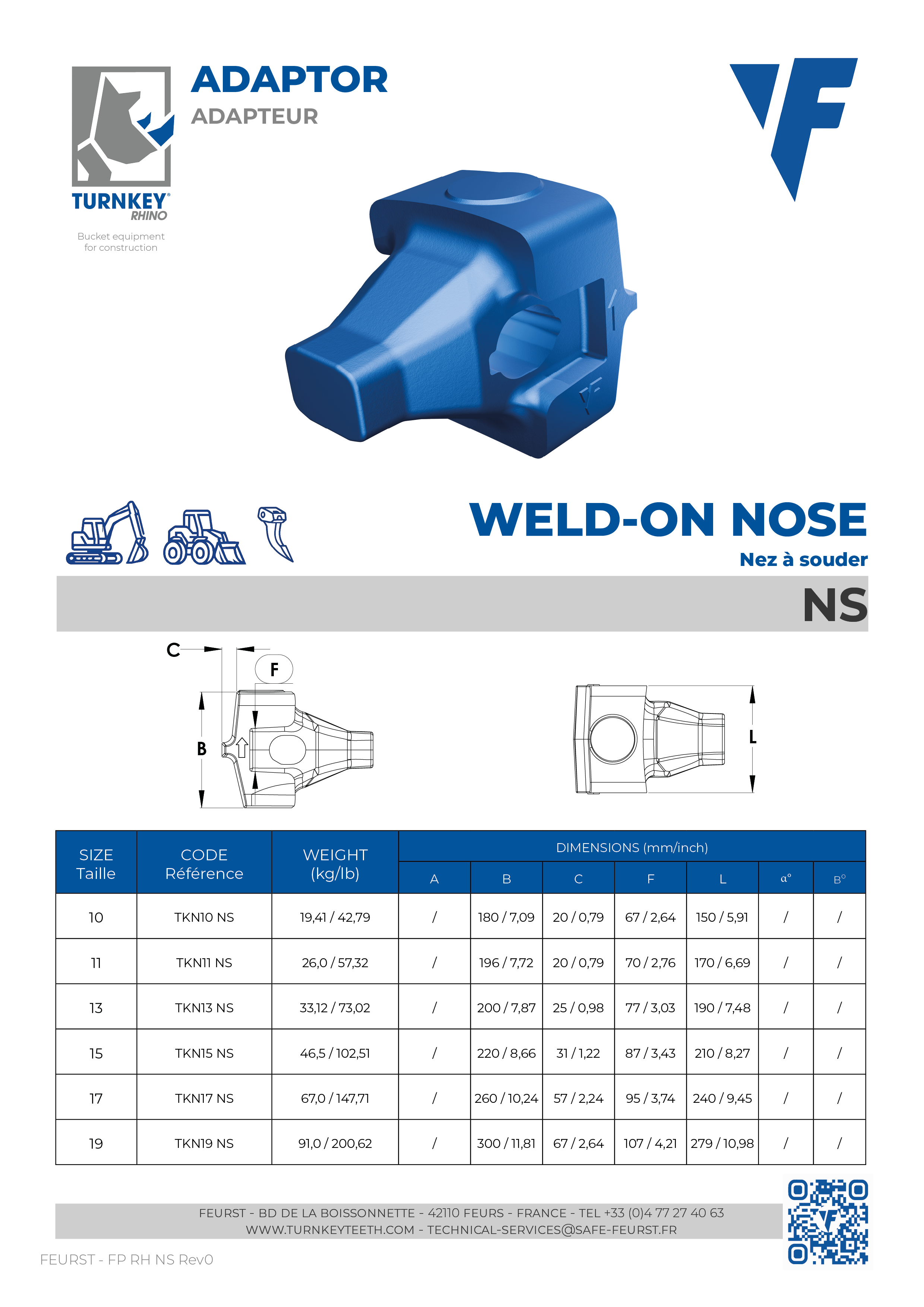

Weld on Nose : Adaptor for ripper application, and for adapter restoration.
Abrasion A10° : Excavator adaptor. A wear cap is fixed to the upper leg. Nose angle is 10°. Excellent abrasion resistance.
Standard : Adaptor for excavators and loaders. Good tooth continuity shape. Adaptor without wear cap for low-brasion applications.
Cast Corner : Specific adaptor for large excavators. This adapter has a blade and wing start, and is fitted into the sides of the bucket. It is most often used in highly abrasive environments.

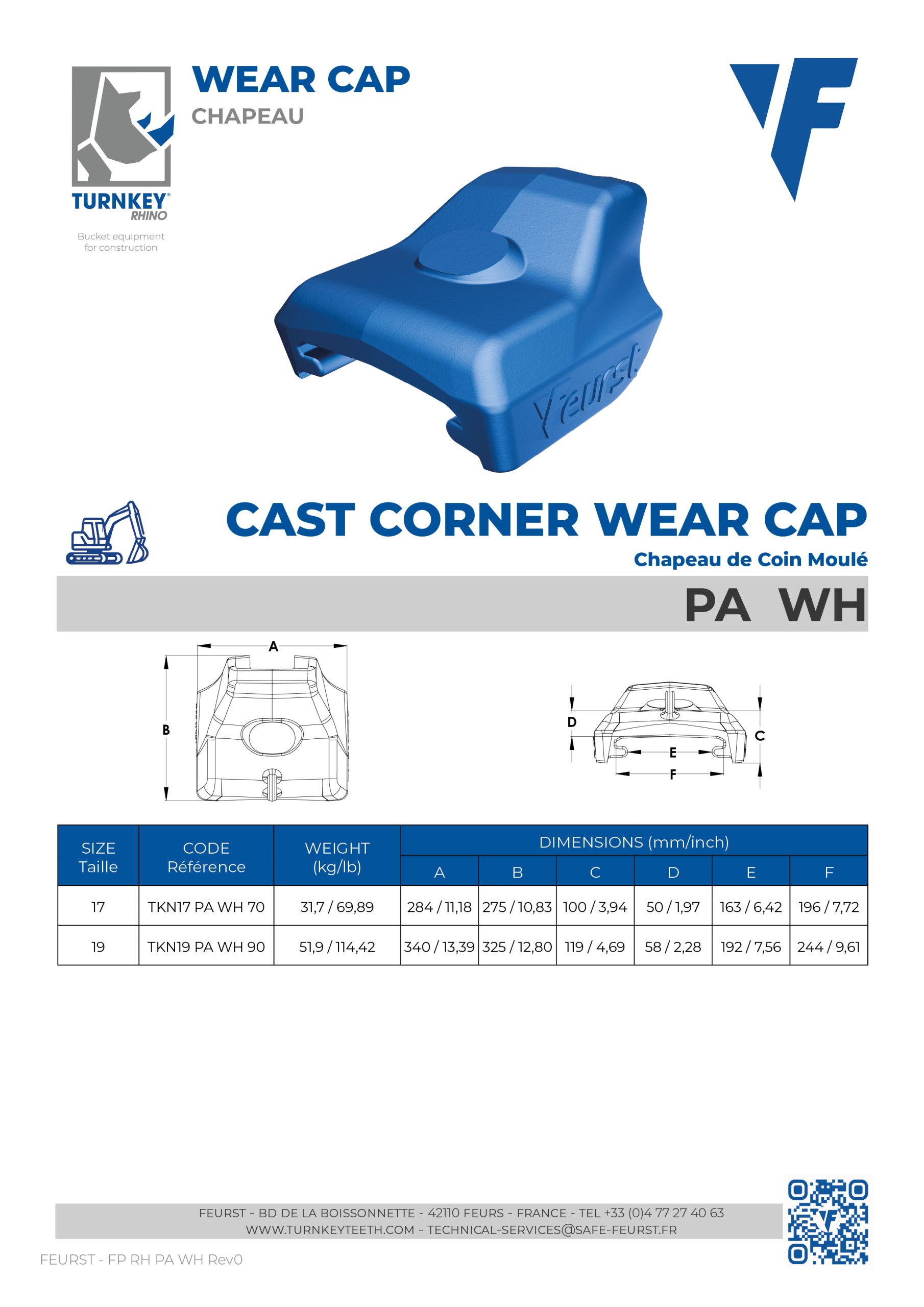

PA WH : Special wear cap for installation on Cast Corner 17 and 19. The cap protects the top of the Cast Corner and the wing start-up at the connection weld.

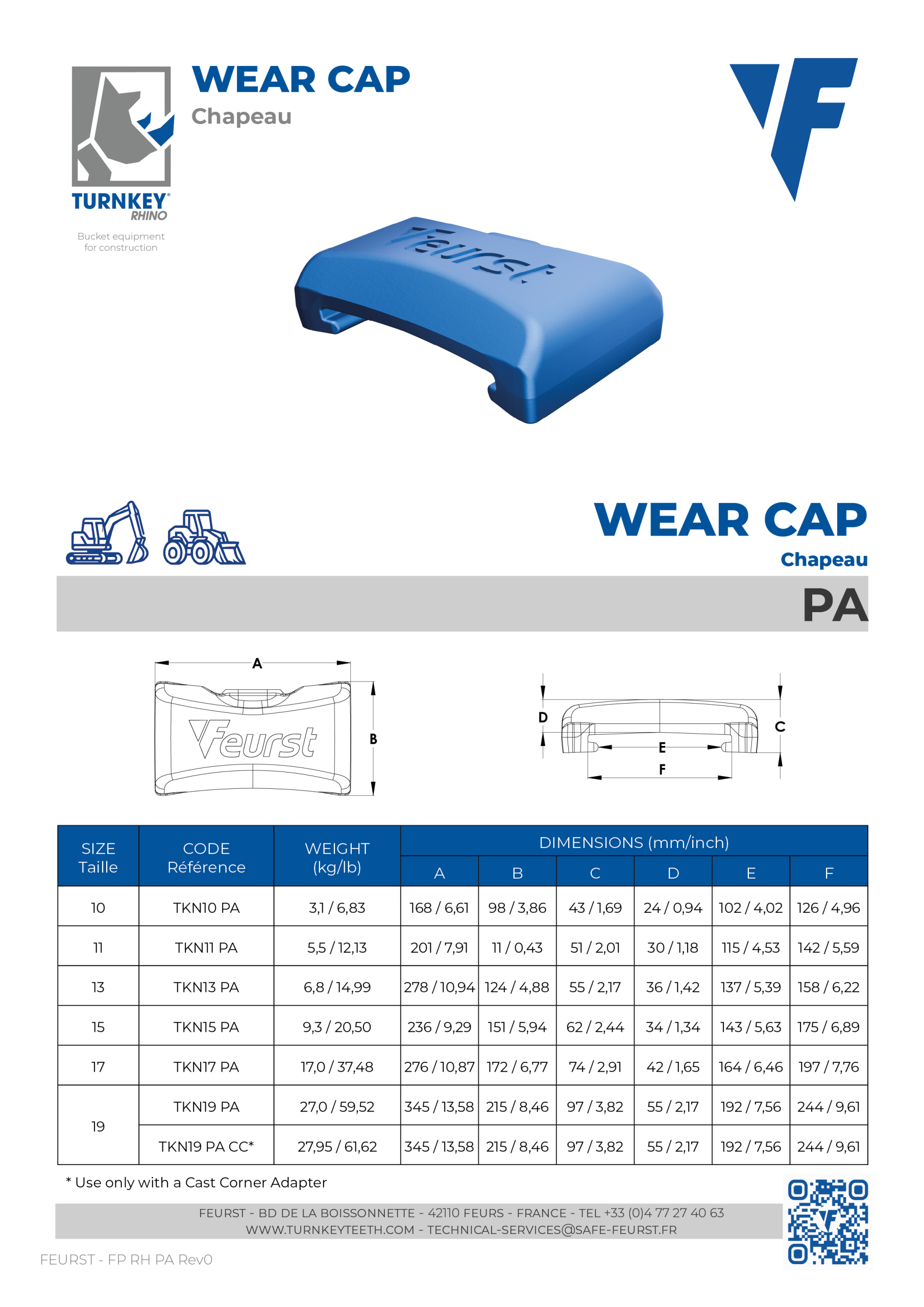

PA et PA CC : Wear cap to fit
A10° and A16° on abrasion adapters and Cast Corner (PA CC).
(B.O.F = Break Out Force) exprimée en tonnes (T)
| Machine | TKN 10 | TKN 11 | TKN 13 | TKN 15 | TKN 17 | TKN 19 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard | HD | Standard | HD | Standard | HD | Standard | HD | Standard | HD | Standard | HD | |
|
Excavatrice POIDS Max. T Max. B.O.F |
70 | 50 | 110 | 88 | 180 | 130 | 270 | 188 | 325 | 210 | 450 | 350 |
| 35 | 29 | 46 | 38 | 60 | 46-48 | 79 | 63 | 95 | 73 | 120 | 98 | |
|
Pelle Butte POIDS Max. T Max. B.O.F |
70 | 50 | 108 | 80 | 180 | 135 | 250 | 190 | 315 | 250 | 460 | 340 |
| 42 | 35 | 56.5 | 46 | 70 | 54 | 88 | 70 | 105 | 82 | 140 | 110 | |
|
Chargeuse POIDS Max. T Max. B.O.F |
85 | 60 | 133 | 93 | 170 | 133 | 280 | 220 | 300T | 270 | - | - |
| 59 | 49 | 77 | 63 | 98 | 78 | 133 | 105 | 160 | 130 | - | - | |
